CRUD Operation - ASP.NET Core MVC with EF Core
 |
| Source Code of this project - just click on, above ⇪ download button and get it. |
CRUD (Create, Read, Update and Delete) Operation
In computer programming the CRUD operation, meaning is Create, Read, Update, and Delete are the four basic functions of persistent storage.In Structured Query Language (SQL)
INSERT meaning is "Create",SELECT meaning is "Read / Retrieve",
UPDATE meaning is "Update / Modify", and
DELETE meaning is "Delete / Destroy".
In Hypertext Transfer Protocol (HTTP)
PUT / POST meaning is "Create",GET meaning is "Read / Retrieve",
PUT / POST / PATCH meaning is "Update / Modify", and
DELETE meaning is "Delete / Destroy".
In RESTful web services [Representational State Transfer (REST)]
POST meaning is "Create",GET meaning is "Read / Retrieve",
PUT meaning is "Update / Modify", and
DELETE meaning is "Delete / Destroy".
Solution Explorer > Solution Name > Project Name
Solution Explorer > Solution Name > Project Name > Resources
Solution Explorer > Solution Name > Project Name > Connected Services
Solution Explorer > Solution Name > Project Name > Dependencies
Solution Explorer > Solution Name > Project Name > Dependencies > Analyzers
Solution Explorer > Solution Name > Project Name > Dependencies > NuGet
Solution Explorer > Solution Name > Project Name > Dependencies > SDK
Solution Explorer > Solution Name > Project Name > Properties
Solution Explorer > Solution Name > Project Name > wwwroot
Solution Explorer > Solution Name > Project Name > Controllers
Solution Explorer > Solution Name > Project Name > Migrations
Solution Explorer > Solution Name > Project Name > Models
Solution Explorer > Solution Name > Project Name > Views
Solution Explorer > Solution Name > Project Name > appsettings
Solution Explorer > Solution Name > Project Name > Program
Solution Explorer > Solution Name > Project Name > Startup
Start your coding from here:
Step 01:
Install Essential NuGet Packages
Install Essential NuGet Packages
> Microsoft.EntityFrameworkCore
> Microsoft.EntityFrameworkCore.SqlServer
> Microsoft.EntityFrameworkCore.Tools

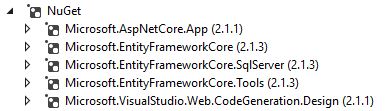

NuGet Packages in Microsoft Visual Studio ⬎
 |
| Figure: Essential NuGet Packages |
Step 02:
📂 Models
▶ Employee.csCreate Employee.cs class in the Models folder and write the following codes ⬎
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace WebApplication1.Models
{
public class Employee
{
public int Id { get; set; }
public string Name { get; set; }
}
}
Employee.cs class Code in Microsoft Visual Studio ⬎
Step 03:
Create DatabaseContext.cs class in the Models folder and write the following codes ⬎
 |
| Figure: Employee class |
Step 03:
📂 Models
▶ DatabaseContext.csCreate DatabaseContext.cs class in the Models folder and write the following codes ⬎
using Microsoft.EntityFrameworkCore;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
namespace WebApplication1.Models
{
public class DatabaseContext : DbContext
{
public DbSet<Employee> Employee { get; set; }
protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
{
optionsBuilder.UseSqlServer(@"Data Source=RJ\RJ; initial catalog=RJUniverse; user id=sa; password=rj123;");
}
}
}
DatabaseContext.cs class Code in Microsoft Visual Studio ⬎
Step 04:
Add Migration in to the project, follow the following instruction ⬎
 |
| Figure: DatabaseContext class |
Step 04:
Add Migration in to the project, follow the following instruction ⬎
Open Package Manager Console
Write add-migration initial command and hit enter button
Use add-migration command in Microsoft Visual Studio ⬎
Write add-migration initial command and hit enter button
Use add-migration command in Microsoft Visual Studio ⬎
 |
| Figure: add-migration initial |
Step 05:
Create Database for this project, follow the following instruction ⬎
Open Package Manager Console
Write update-database or update-database -verbose command and hit enter button
Use update-database command in Microsoft Visual Studio ⬎
 |
| Figure: update-database |
Or
Use update-database -verbose command in Microsoft Visual Studio ⬎
 |
| Figure: update-database -verbose |
Step 06:
📂 Controllers
▶ EmployeeController.cs
Create EmployeeController.cs controller in the Controllers folder and write the following codes ⬎
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using WebApplication1.Models;
namespace WebApplication1.Controllers
{
public class EmployeeController : Controller
{
// Start code for this project - ~RJ~
DatabaseContext db = new DatabaseContext();
// Start code for Index page - ~RJ~
public IActionResult Index()
{
List<Employee> data = db.Employee.ToList();
return View(data);
}
// End code for Index page - ~RJ~
// Start code for Create page - ~RJ~
public IActionResult Create()
{
return View();
}
[HttpPost]
public IActionResult Create(Employee model)
{
db.Employee.Add(model);
db.SaveChanges();
return RedirectToAction("Index");
}
// End code for Create page - ~RJ~
// Start code for Edit and Update Action - ~RJ~
public IActionResult Update(int Id)
{
Employee model = db.Employee.Find(Id);
return View("Create", model);
}
[HttpPost]
public IActionResult Update(Employee model)
{
db.Employee.Update(model);
db.SaveChanges();
return RedirectToAction("Index");
}
// End code for Edit and Update Action - ~RJ~
// Start code for Delete Action - ~RJ~
public IActionResult Delete(int Id)
{
Employee RJ = db.Employee.Find(Id);
if (RJ != null)
{
db.Employee.Remove(RJ);
db.SaveChanges();
}
return RedirectToAction("Index");
}
// End code for Delete Action - ~RJ~
}
}
EmployeeController.cs controller Code in Microsoft Visual Studio ⬎
Step 07:
▷ Index.cshtml
Create Index.cshtml cshtml file in the Views > Employee folder and write the following codes ⬎
 |
| Figure: EmployeeController |
Step 07:
📂 Views
🗁 Employee▷ Index.cshtml
Create Index.cshtml cshtml file in the Views > Employee folder and write the following codes ⬎
@model IEnumerable<WebApplication1.Models.Employee>
@{
ViewData["Title"] = "Index";
}
<h2>Index</h2>
<p>
<a asp-action="Create">Create New</a>
</p>
<table class="table">
<thead>
<tr>
<th>
@Html.DisplayNameFor(model => model.Name)
</th>
<th></th>
</tr>
</thead>
<tbody>
@foreach (var item in Model)
{
<tr>
<td>
@Html.DisplayFor(modelItem => item.Name)
</td>
<td>
<a asp-action="Update" asp-route-id="@item.Id">Edit</a> |
<a asp-action="Delete" asp-route-id="@item.Id">Delete</a>
</td>
</tr>
}
</tbody>
</table>
Index.cshtml file Code in Microsoft Visual Studio ⬎
 |
| Figure: Index.cshtml |
Step 08:
📂 Views
🗁 Employee▷ Create.cshtml
Create Create.cshtml cshtml file in the Views > Employee folder and write the following codes ⬎
@model WebApplication1.Models.Employee
@{
ViewData["Title"] = Model != null ? "Update" : "Create";
}
<h2>Create</h2>
<h4>Employee</h4>
<hr />
<div class="row">
<div class="col-md-4">
<form asp-action="@ViewData["Title"]">
<div asp-validation-summary="ModelOnly" class="text-danger"></div>
<div class="form-group">
<label asp-for="Name" class="control-label"></label>
<input asp-for="Name" class="form-control" />
<span asp-validation-for="Name" class="text-danger"></span>
</div>
<div class="form-group">
<input type="submit" value="@ViewData["Title"]" class="btn btn-default" />
</div>
</form>
</div>
</div>
<div>
<a asp-action="Index">Back to List</a>
</div>
@section Scripts {
@{await Html.RenderPartialAsync("_ValidationScriptsPartial");}
}
Create.cshtml cshtml file Code in Microsoft Visual Studio ⬎
Output:
 |
| Figure: Create.cshtml |
Output:
 |
| Figure: Employee Index Window |
 |
| Figure: Employee Create Window |
 |
| Figure: After Employee Creation Window |
 |
| Figure: Edit Window |
 |
| Figure: After Edit Window |
 |
| Figure: After Delete Window |
Essential NuGet packages for this project
Microsoft.EntityFrameworkCoreEntity Framework Core is a lightweight and extensible version of the popular Entity Framework data access technology.
Commonly Used Types:
Microsoft.EntityFrameworkCore.DbContext
Microsoft.EntityFrameworkCore.DbSet
To install this package by the NuGet Package Manager Console in Visual Studio, use the following command:
PM> Install-Package Microsoft.EntityFrameworkCore -Version 2.1.1
Microsoft.EntityFrameworkCore.SqlServer
Microsoft SQL Server database provider for Entity Framework Core.
To install this package by the NuGet Package Manager Console in Visual Studio, use the following command:
PM> Install-Package Microsoft.EntityFrameworkCore.SqlServer -Version 2.1.1
Microsoft.EntityFrameworkCore.Tools
Entity Framework Core Tools for the NuGet Package Manager Console in Visual Studio.
Enables these commonly used commands:
Add-Migration
Drop-Database
Get-DbContext
Scaffold-DbContext
Script-Migrations
Update-Database
To install this package by the NuGet Package Manager Console in Visual Studio, use the following command:
PM> Install-Package Microsoft.EntityFrameworkCore.Tools -Version 2.1.1
Essential Package Manager Console Commands
PM> add-migration initial [This command is used to add Migration into the current project. You have to choose any name to add Migration. Such as "initial".]PM> update-database [This command is used to Create Database for the current project.]
PM> update-database -verbose [This command is used to Create Database and show the creating process of database for the current project.]
PM> add-migration update1 [This command is used to update Migration into the current project. You have to choose any name for every update. Such as "update1".]
PM> Remove-Migration [This command is used to Remove Migration.]
PM> drop-database [This command is used to remove current database, which is associated with this project.]
Moral:
Slow and steady wins the race.
